Shower Trays

Description

Included in the range are both recessed and low level shower trays and floor formers which are wheel chair friendly.

Lowest entry, high performance tray range, just 30mm high - "Best in Class".
lndependently tested " Best in Class" anti-slip surface to DIN 51097: 1992 Class "C", the highest achievable classification that tests slip resistance, with easy clean finish.
Addresses problematic spaces with the cut to size ability to suit any area where access may be restricted. Can be cut down by up to 300mm.
Reinforced SMC construction tested to withstand 635Kg.
Exceptionally strong & self supporting, rests unsupported on the existing bathroom floor without being bedded down onto a sand and cement mix.
Circular ribbed underside designed for setting into a concrete or screed base & eliminates slippage when installing.
Waste positions situated to allow trap to avoid floor joists.
Unique end cap easily seals and screws in place to conceal the cut end of 700 and 800mm trays. Note: They are not available for 900 or 1000mm sizes.

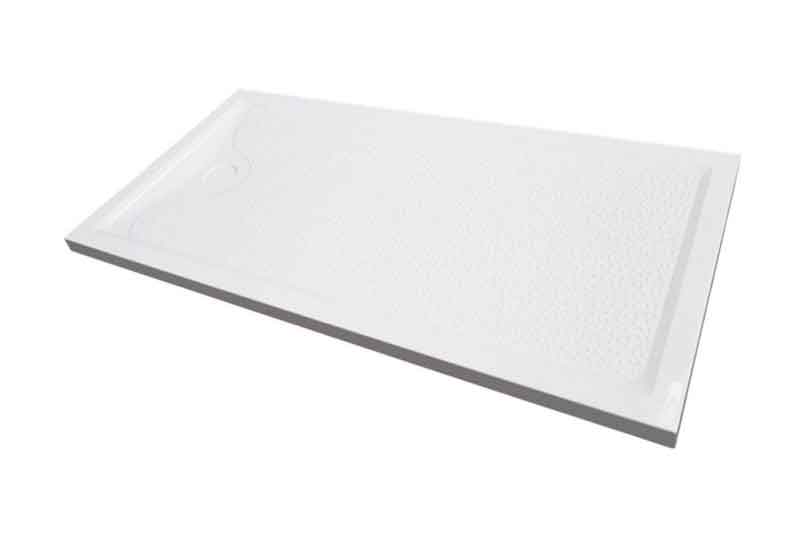

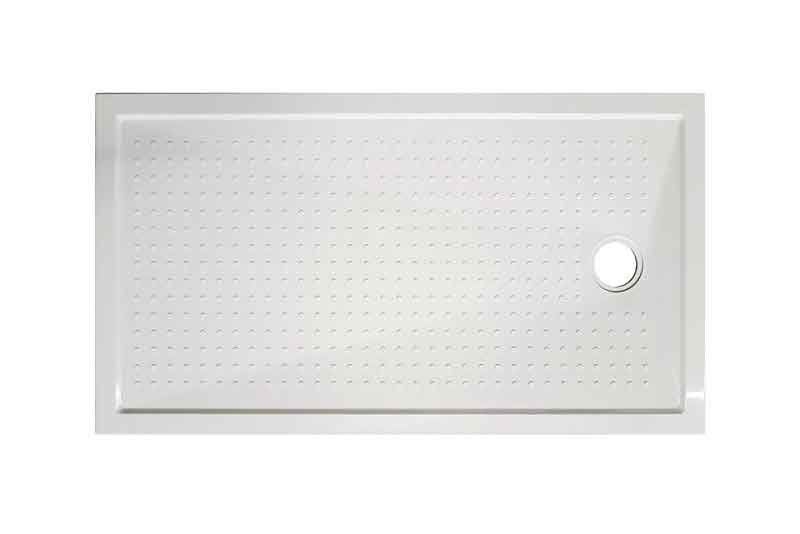

04. FAL14080 - 1400mm x 800mm

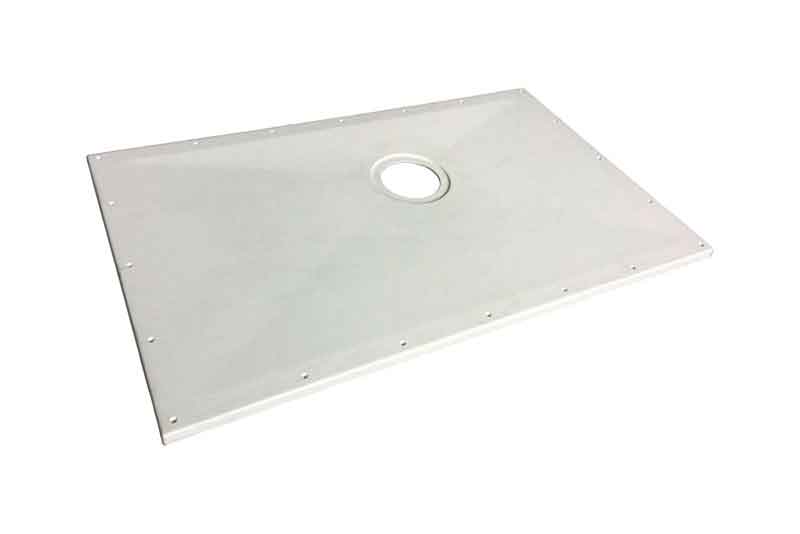

04. SD12075 - 1300mm x 750mm

A level access wetroom shower area concealed beneath the vinyl or tiled flooring once installed
Tested to withstand 635 Kg across the entire surface area to simulate a standing person
No additional support needed around the waste assisting ease & speed of installation*
24mm thick to facilitate installation with existing floorboards
40mm flat area around the floor farmer perimeter for door placement & water retention
Larger shower area, ideał for wheelchairs

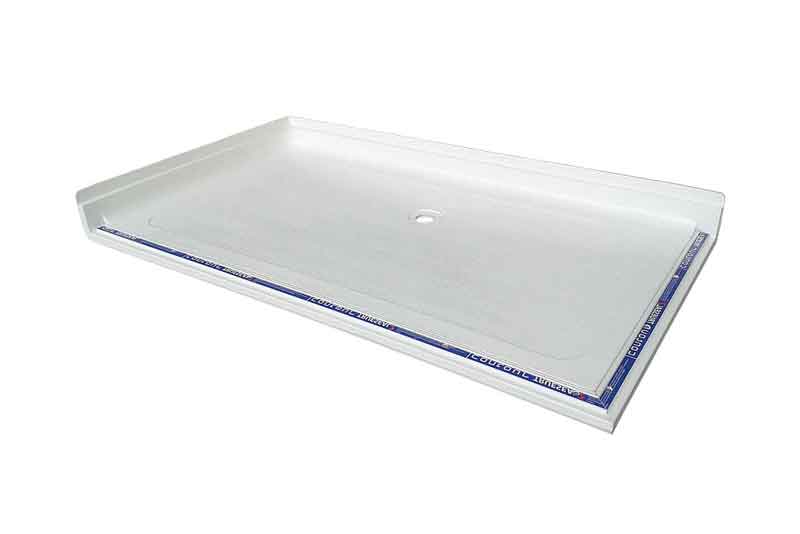

02. SWI1045 - 1045mm x 1045mm

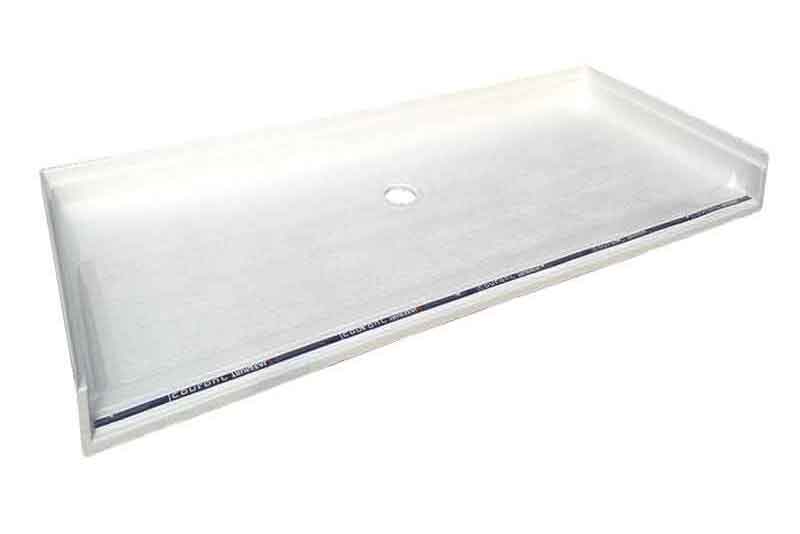

01. EA185745 - (Bath Replacement) 1850mm x 745mm

Provides a practical corner entry showering solution for users with mobility difficulties or requiring wheelchair access
Anti-slip surface for an assured underfoot grip
Installation friendly, no need for intricate corner seam welds
Hot seam weld vinyl sheet flooring directly onto the tray's unique TRUESEAL2 floor edge profile, creating a perfect watertight join
Only requires the removal of -14mm of flooring, the equivalent of a floorboard (aport from the trap oreo where additional space is required)
Locate in wooden or solid floor settings, minimal need for additional support under the tray required
Shower tray enclosure and ancillary equipment can be installed during one site visit, leaving the flooring to be fitted afterwards
14mm tilling lip is watertight and will accommodate wall boards or wall tiles
Handed & non-handed tray options available
Exclusively incorporates Biomaster Antibacterial product protection

Falcon 40 low level shower trays have a low entry point for easy step-in access - 40mm high
Falcon 40 low access shower trays require only the minimum amount of installation and disruption to a property
Suitable for wooden or solid floors
Can be recessed info the floor if required by 40mm for level access
Falcon 40 low level shower tray is exceptionally strong, can rest unsupported on top of the existing bathroom floor without being bedded down onto a sand and cement mix
Waste position situated to allow trap to avoid floor joists
Low access anti-slip surface for an assured underfoot grip
